Molewing-e from Flying Moleman RC Models

DPR Curare 80 Inch (SEA-304Y)(SEA-304G)

DPR Curare 80 Inch (SEA-304Y)(SEA-304G)

DPR Curare 80 Inch (SEA-304Y)(SEA-304G)

DPR Curare 80 Inch (SEA-304Y)(SEA-304G)

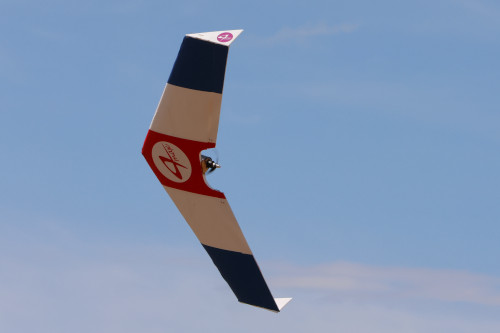

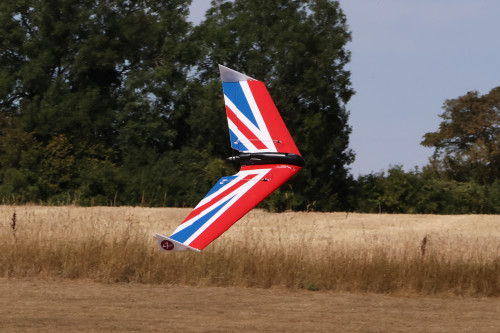

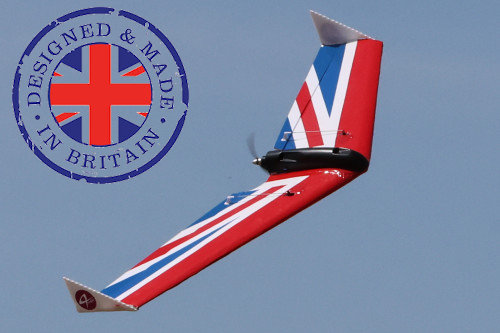

An example of a finished model and covered in
vinyl covering available from MDP Supplies

Share on your Facebook Page

Introducing the Molewing-e from Flying Moleman RC Models

Following the demise of the very popular Zagi and the even more popular Yeti, the Molewing-e has stepped in and has filled the gap for a very affordable and highly capable 47" flying wing.

It features very easy and fast construction, you'll have this bird ready to fly in just a handful of hours.

As it is made from foam and features a 10mm x 500mm long carbon fibre batten spar and is covered in fibre reinforced tape, it can put up with "spirited" flying as well as some not so perfect landings.

With the recommended 4-Max motors you'll experience unlimited vertical performance as well as a good turn of speed, many more times that of the old brushed speed 400 motors it was originally designed for.

With mixed throttle flying you can expect 6-8 minutes of enjoyable flight times.

We highly recommend metal geared standard sized servos to take the knocks and tumbles of a belly landing.

Features

  • Comprehensive hardware pack
  • Docile flying characteristics
  • Uses a standard 3S 2200mAh LiPo
  • Ideal for learners and experienced pilots
  • Robust
  • Fits in most cars
  • Great fun to fly
  • Designed and Made in Great Britain!

Needed to complete

  • 1x 4-channel Tx / Rx combo with "delta" mixing
  • 2x 4M-556AMG-087 metal geared standard sized servos
  • 1x Electric motor (inrunner or outrunner)
  • 1x 30A ESC
  • 1x 3S 2200mAh 60C Li-Po
  • 1x Electric propeller to suit motor

Contents

  • 2 Halves of foam wing
  • Correx™ ailerons
  • Correx™ end plates
  • 10mm carbon fibre batten wing spar, 500mm long
  • A large roll of fibre reinforced tape
  • A large roll of white covering tape
  • Pre-formed motor and battery tray
  • Pre-formed cover
  • Hardware pack (horns, pushrods etc.)
  • Outrunner wood pack
  • Step-by-step instruction manual



Specification

Wingspan:

1194mm (47")

Flying Weight:

Approx 800g (1.76lbs) Inc outrunner and 3S 2200mAh

Battery:

2200mAh 60C LiPo (Sold Separately)

Please click here to download
the assembly Instructions

Please Note: Due to size and weight limitations we are unable to ship Kits, ARTFs and/or batteries outside of Mainland UK



Please Note Due to having our knuckles severely rapped by the Post Office we can no longer send any kind of battery via the post Any order containing batteries will have to be sent via courier and this will incur a minimum of a £9.99 delivery and packaging charge
We cannot deliver batteries outside of mainland UK



We can also supply

Glues and Coverings, Covering Iron, Soldering Tools, General Tools and Scalpels, Chargers, Charging Accessories




Description Price Quantity
Molewing-e kit
£84.00
2pcs of 4M-556AMG-087
standard full sized metal geared, 8.7Kg servos
£24.99
PPL-60C3S-2200 3S, 60C, 2200mAh LiPo Battery £24.00




Value Powertrain (Outrunner) Price Quantity
A2212-2200 Value Motor (Do not run on 4S LiPo or larger) £15.49
Value 30A ESC £12.99
Vortex 6" x 4" Pusher
(This is the largest prop we recommend for this motor)
£2.41
The following 3 items are needed if you wish to use a folding Prop for the Value Motor
Prop Driver - 3.175mm Shaft/5.0mm Prop £2.75
5mm Folding Yoke £9.99
Folding Prop (pair of blades) 6" x 4"
(This is the largest prop we recommend for this motor)
£4.49




Performance Powertrain (Outrunner) Price Quantity
PO-2826-2200 Performance Motor
(Do not run on 4S LiPo or larger)
£22.99
Performance 30A ESC and Programming box £33.99
Vortex 6" x 4" Pusher
(This is the largest prop we recommend for this motor)
£2.41
The following 3 items are needed if you wish to use a folding Prop for the performance Motor
Prop Driver - 4.0mm Shaft/6.0mm Prop £2.95
6mm Folding Yoke £9.99
Folding Prop (pair of blades) 6" x 4"
(This is the largest prop we recommend for this motor)
£4.49




Inrunner Powertrain Price Quantity
PPI-2847-2180 (Do not run on 4S LiPo or larger) £29.99
Vortex 6" x 4" Pusher
(This is the largest prop we recommend for this motor)
£2.41
Prop Driver - 4.0mm Shaft/6.0mm Prop £2.95
Performance 30A ESC and Programming box £33.99
The following 2 items are needed if you wish to use a folding Prop for the Inrunner Motor
6mm Folding Yoke £9.99
Folding Prop (pair of blades) 6" x 4"
(This is the largest prop we recommend for this motor)
£4.49
