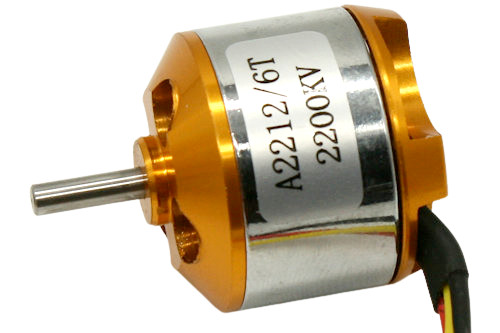

A2212-2200kv
Motor comes with 3.5mm male connectors (fitted)
and rear motor mount and prop driver
Motor Specifications |
Part Number |
A2212-2200kv |
RPM/Volt with no Load |
2200kv |
Diameter |
28mm |
Length |
27mm |
Weight |
53g inc wires and connectors |
Shaft Diameter |
3.175mm (3.2mm) |
Shaft Length |
11mm |
Bulkhead to Prop Length |
40.5mm |
Voltage Input Range |
6V ~ 12.6 (2-3 LiPo Battery) |
Connectors |
3x 3.5mm Gold plated male bullet connectors |
Thrust/Speed |
470g/1.04lbs Using a GWS style 6x3.5 prop at 11.1V (10.3A). Est Speed 59MPH |
Suitable Battery |
3S 800mA / 3S 1000mA |
Motor Part Number |
F |
G |
H |
A2212-* |
40mm |
N/A |
2mm |
All Dimensions are approximate
|
|
