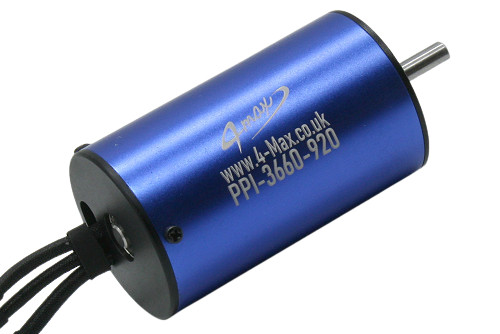

PPI-3660-920
(Equivalent to Speed 540L/500/600)


Motor comes with
3.5mm male connectors
already fitted
kv |
920kv |
Motor Diameter |
36mm |
Motor Length |
60mm |
Shaft Diameter |
5mm |
Shaft Length |
17mm |
Weight |
250g |
Mounting Hole Size |
M3, pitch 25mm |
Mounting Hole Depth |
6mm Max |
No. of Poles |
4 |
No Load Current |
1.1A |
Max Amps |
30A |
Max Volts |
36V |
Recommended ESC |
45A-60A |
Recommended Prop |
10x5 - 3S LiPo |
This motor is identical in diameter and fixing holes to either
the old brushed Speed 540L, Speed 500 or Speed 600
but will produce 2-3 time the power.
We recommend a 10x5 prop on 3S,
3300mAh LiPo as a brushless upgrade.
|
