Black Horse Speed Air 40

Brushless Electric Setup for the Black Horse Speed Air 40

Brushless Electric Setup for the Black Horse Speed Air 40

Manufacturer
Black Horse
Model
Speed Air 40
Wingspan
1500mm / 59"
Flying Weight
2267g / 5lbs

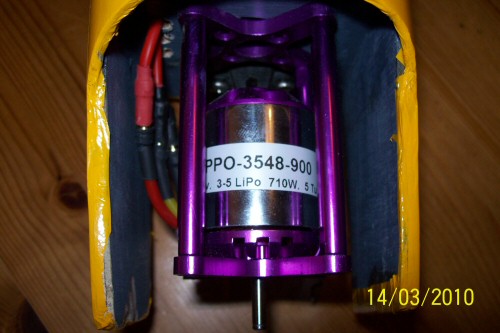

Motor
PO-3547-800 plus
Prop Driver PP-PDRV40-50
Prop
JXF 12" x 6"
Battery
4S 3300mAh LiPo (14.8V)
ESC
4-Max 4M-HESC60A35V2
Volts under Load
14.8V
Amps
30A
Thrust
5.5lbs
RPM
9330

"Quite an Amp friendly economical setup. The aircraft RTF is approx 5Lbs, so plenty of oomph for aerobatics.

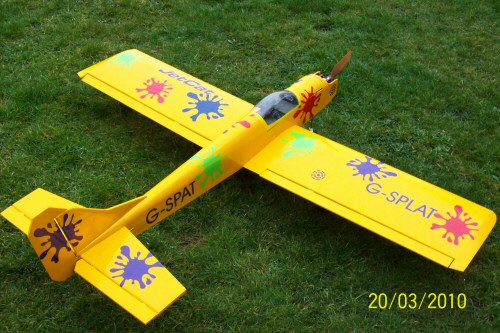

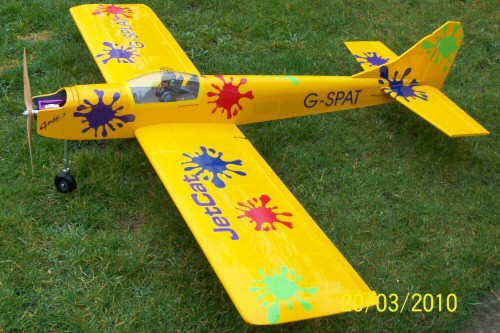

You will note, I have recovered and slightly modified the Speed Air, got rid of that awful sticky covering scheme and recovered in yellow, with splat decals, using Matt Chapman's CAP as a basis for the theme.
I think it looks rather good and much better than original. I also enlarged the rudder and re-glued all joints and added a hatch for Lipo changes."
