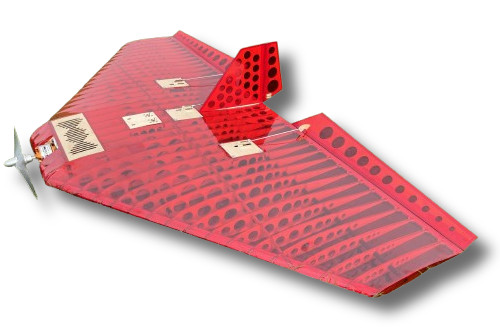

Electric Setup For The
38" MVM Delta Rapier

Designed by	Modern Vintage Models
Model Name	MVM Delta Rapier
Wingspan	965mm / 38"
Flying Weight	~3lbs (1.36kg)



Please Note Due to having our knuckles severely rapped by the Post Office we can no longer send any kind of battery via the post. Any order containing batteries will have to be sent via courier and this will incur a minimum of a £9.99 delivery and packaging charge.
We cannot deliver batteries outside of mainland UK

This Setup should provide around 3.3lbs of static thrust
with an estimated top speed of around 65MPH

Part Number	Description	Price	Quantity
PO-3535-1390	Brushless Outrunner Motor	£28.99
4M-HESC40AV2	40A Brushless Electronic Speed controller Supplied with 3.5mm connectors on motor side and XT60 on battery side	£43.94
APC 9x6	APC 9" x 6" Propeller	£3.65
4M-38SPIN-R	38mm Diameter in Red	£6.39
4M-175AMG-030	3pcs of 4M-175AMG-030 Mini Analog Metal Geared Servo	£26.19
PPL-60C3S-2200	3S, 2200mAh LiPo Battery 60C	£24.00



This Setup should provide around 3.4lbs of static thrust
with an estimated top speed of around 80MPH

Part Number	Description	Price	Quantity
PO-3535-1090	Brushless Outrunner Motor	£28.99
4M-HESC40AV2	40A Brushless Electronic Speed controller Supplied with 3.5mm connectors on motor side and XT60 on battery side	£43.94
APC 8x6	APC 8" x 6" Propeller	£3.40
4M-38SPIN-R	38mm Diameter in Red	£6.39
4M-175AMG-030	3pcs of 4M-175AMG-030 Mini Analog Metal Geared Servo	£26.19
PPL-60C4S-1800	4S, 1800mAh LiPo Battery 60C	£30.00
