Electric Setup For the Gordon Whitehead
Bowers Fly Baby

Bowers Fly Baby by Gordon Whitehead

Bowers Fly Baby by Gordon Whitehead

Share on your Facebook Page

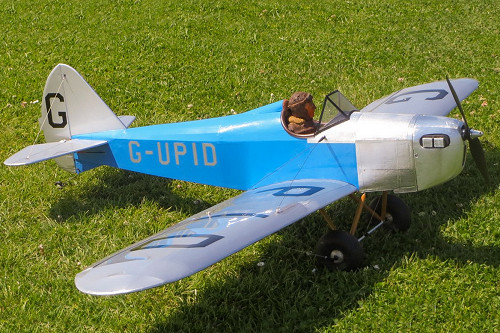

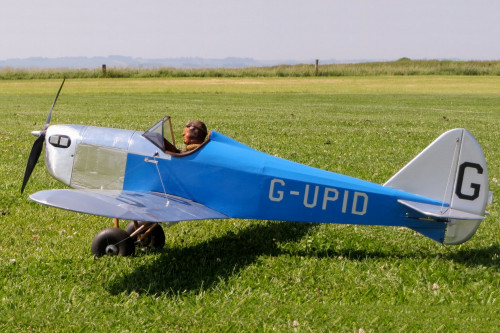

Bowers Fly Baby, Designed by Gordon Whitehead and Built by Peter Kirby

Designed by
Gordon Whitehead
Built by
Peter Kirby
Model Name
Bowers Fly Baby
Wingspan
56" / 1422mm
Flying Weight
2.75lbs / 1247g Approx.
Motor Thrust/Speed with
APC 11x5.5 Prop on 3SLiPo
3lbs / 1360g - 41MPH approximate values

"The plan shows 51 1/2" wing span but as Gordon suggests, for scale , enlarge wing by two bays which gives 56" span. The 3s 1300 Lipo gives a good 5min. flying time with a nice scale speed at just over half throttle.
There is plenty of room for bigger capacity batteries if required."
Kind Regards , Peter Kirby

We would suggest either a 3S 1800mAh or a 3S 2200mAh LiPo



Please Note Due to having our knuckles severely rapped by the Post Office we can no longer send any kind of battery via the post. Any order containing batteries will have to be sent via courier and this will incur a minimum of a £9.99 delivery and packaging charge.
We cannot deliver batteries outside of mainland UK



Description Price Quantity
PO-2834-1020 Brushless Motor £27.49
30A ESC and Programming card £30.98
APC 11"x 5.5" £4.70
4x 4M-100AMG-022 - Metal Gear Servo £29.96
60C, 3S, 1300mAh 11.1V LiPo Battery £16.25
