Electric Setup For The Manx Queen As
Featured in the January 2023 Issue of RCM&E

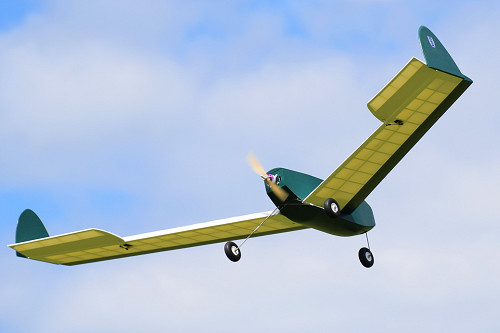

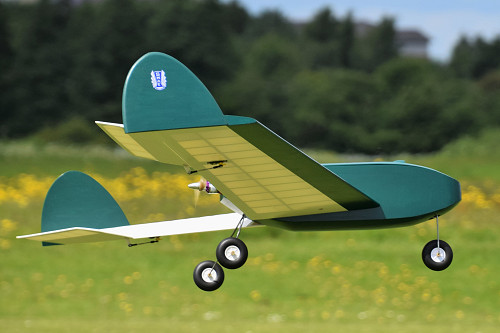

Electric setup for Manx Queen

Electric setup for Manx Queen

Brushless Electric Setup for the Manx Queen

Designed by
A.H.Wilson
Built by
Shaun Garrity / Rob Day
Model Name
Manx Queen
Wingspan
72" / 1829mm
Flying Weight
3.8lbs / 1600g
Motor Thrust/Speed with
APC 10x5 on 3S LiPo
2.9lbs / 1310g - 45MPH approximate values


Description Price Quantity
PO-3535-1090 Brushless Motor £28.99
4M-HESC40AV2 Brushless ESC + Programming Card £43.94
APC 10x5 Prop £4.15
PPL-60C3S-2200 LiPo Battery £23.50
Medium Surface Horns £1.10
4M-175AMG-030 Servos x3 £26.19
3" Light Weight Rubber Wheels £4.00
Click here for our range of glues and covering materials
