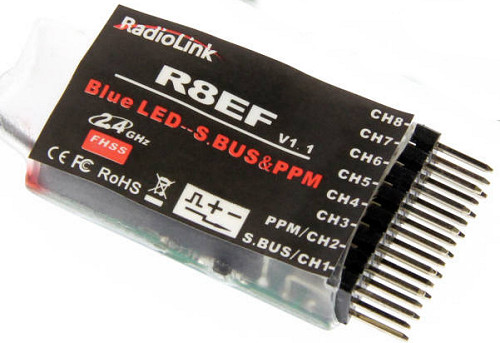

RadioLink R8EF 2.4Ghz Receiver

Same FHSS spread spectrum algorithm as AT9S Pro and 67-channel pseudo-random frequency hopping help reduce overall signal interference.

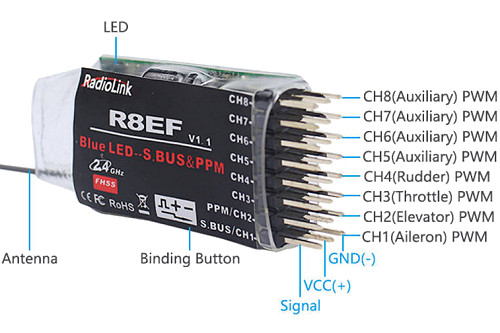

SBUS/PPM and PWM Signals Output

• 8 channels.
• SBUS/PPM and PWM can operate simultaneously for seamless user control.
• Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat and Robot.
• Wide operating voltage tolerance that from 3 to 12 volts.

Specifications

• Size: 41.5*21.5*11.5mm (1.63" *0.85" *0.45")
• Weight: 7g (0.25oz)
• Channels Qty: 8 channels
• Signals: SBUS/PPM&PWM
• Operating Input Voltage: 3~12V
• Operating Current: 38-45mA@5V
• Section Precision: 4096, 0.25µs per section
• Range 2000m*
• The maximum PWM jitter is 1.84us with a standard of just 0.5us.

* Control distance: 2000 meters (1.24 Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible transmitter: T8FB
