HiTEC HS-77BB Low Profile 35.0g Analog Servo,
4.4Kg/5.5Kg Pull
From £21.59!

HiTEC HS-77BB 35.0g Analog Ball Raced Servo

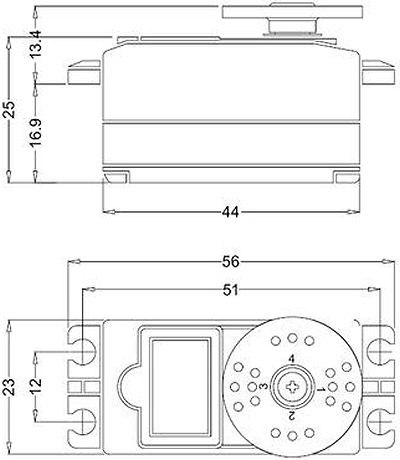

HiTEC HS-77BB Dimensions

All Servos come with a full set of arms and accessories

Share on your Facebook Page

HiTEC HS-77BB Low Profile 35.0g Analog Servo
4.4Kg/5.5Kg Pull

Specification

Operating Voltage Range

4.8 ~ 6VDC

Motor

3 Pole Metal Brush Ferrite

4.8V Operating Torque/Speed

4.4Kg.cm/0.18sec/60°

6.0V Operating Torque/Speed

5.5Kg.cm/0.14sec/60°

Dimensions

44.0mm x 23.0mm x 25.0mm

Gears

Plastic

Bearing

Top Ball Bearing

Weight

35.0g / 1.23oz

No Load Operating Current Draw

250 mAh

Stall Current Draw

800 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
HS-77BB 1pcs of HS-77BB Low Profile Analog Servo £21.59
