HiTEC HS-5685MH Standard 57g Digital
Dual Ball Raced Metal Geared Servo,
11.3Kg/12.9Kg Pull

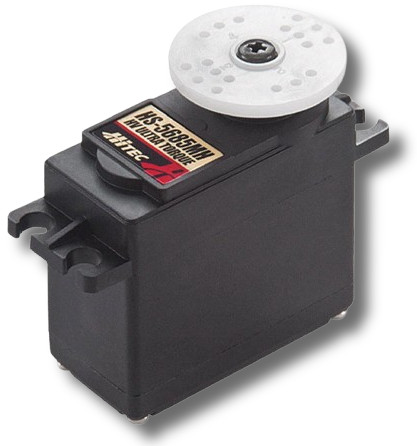

HiTEC HS-5685MH 57.0g Digital Ball Raced Servo

All Servos come with a full set of arms and accessories

HiTEC HS-5685MH Standard 57g Digital, Dual Ball Raced, Metal Geared Servo. 11.3Kg/12.9Kg Pull

Specification
Operating Voltage Range	4.8 ~ 6VDC
Motor	3 Pole Metal Brush Ferrite
4.8V Operating Torque/Speed	11.3Kg.cm/0.2sec/60°
6.0V Operating Torque/Speed	12.9Kg.cm/0.17sec/60°

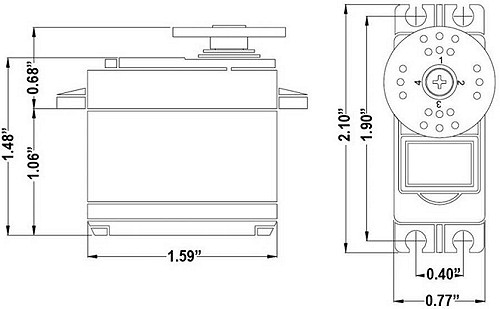

Dimensions	40.6mm × 19.8mm × 37.8mm
Gears	Metal
Bearing	Dual Ball Bearing
Weight	57g / 2.01oz
Spline Size	24T (Ø6mm)

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
