HiTEC HS-485HB Standard 45.0g Analog Servo,
4.8Kg/6.0Kg Pull
From £17.99!

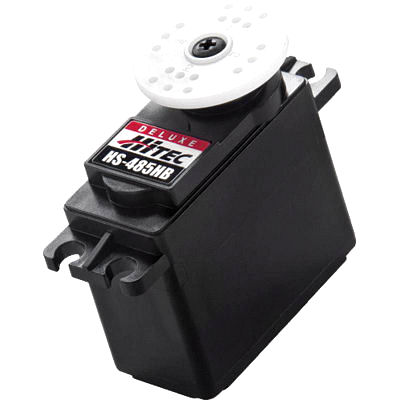

HiTEC HS-485HB 45.0g Analog Ball Raced Servo

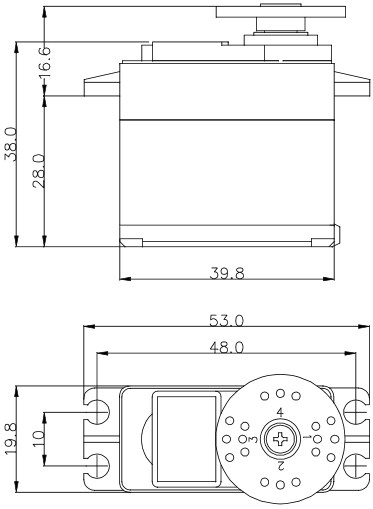

HiTEC HS-485HB Dimensions

All Servos come with a full set of arms and accessories

Share on your Facebook Page

HiTEC HS-485HB Standard 45.0g Analog Servo

Specification

Operating Voltage Range

4.8 ~ 6VDC

Motor

Cored Metal Brush

4.8V Operating Torque/Speed

4.8Kg.cm/0.22sec/60°

6.0V Operating Torque/Speed

6.0Kg.cm/0.18sec/60°

Dimensions

39.8mm x 19.8mm x 38.0mm

Gears

Karbonite Resin

Bearing

Top Ball Bearing

Weight

45.0g / 1.587oz

No Load Operating Current Draw

180 mAh

Stall Current Draw

1000 mAh

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
HS-485HB 1pcs of HS-485HB Standard Analog Servo £17.99
