Bit Secure ShoppingHiTEC D645MW Standard sized 60.0g Programmable, Water Resistant, Metal Servo, |
||||||||||||||||||||||||
|
All Servos come with a full set of arms and accessories

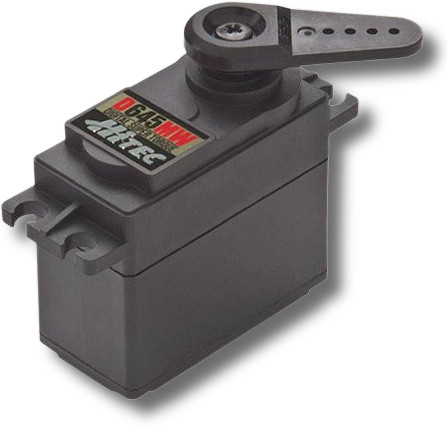

HiTEC D645MW
A programmable, 32-bit, high torque, wide voltage, water resistant, steel gear 60g servo
|
||||||||||||||||||||||||
Specification |
|
Operating Voltage Range |
4.8 ~ 7.4VDC |
Motor |
3 Pole Metal Brush Ferrite |
| 4.8V Operating Torque/Speed |
8.3Kg.cm/0.28sec/60° |
6.0V Operating Torque/Speed |
11.3Kg.cm/0.2sec/60° |
6.0V Operating Torque/Speed |
12.9Kg.cm/0.17sec/60° |

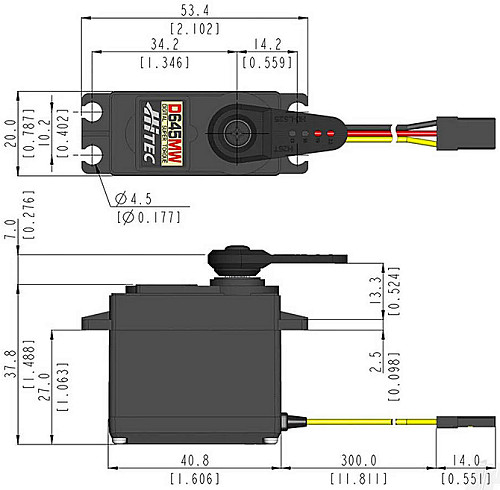

Dimensions |
40.6mm × 19.8mm × 37.8mm |
Gears |
Metal |
Bearing |
Dual Ball Bearing |
Weight |
60.0g / 2.116oz |
Spline |
25T (Ø6mm) |
Programmable |
Yes |
We can also supply
MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.
