4-Max 4M-556DMG-173 55.6g Standard Sized Metal Geared Digital Dual Ball Raced Servo, 17.3Kg/20.4Kg Pull
From £16.06!

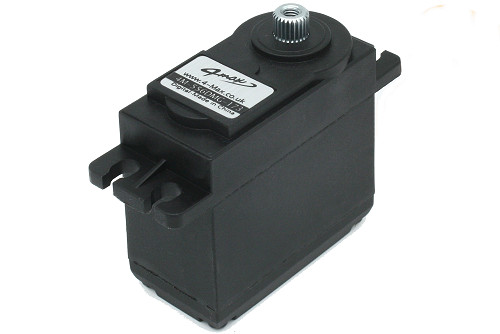

4-Max 55.6g Standard Sized Metal Geared Digital Dual Ball Raced  Servo

4-Max Servo 4M-556DMG-173

All Servos come with a full set of arms and accessories

Share on your Facebook Page

4-Max 4M-556DMG-173 Standard Sized Metal Geared Digital Dual Ball Raced Servo, 17.3Kg/20.4Kg

Specification

Operating Voltage Range

4.8 ~ 6.0VDC

Motor

Standard

4.8V Operating Torque/Speed

17.3Kg.cm/0.18sec/60°

6.0V Operating Torque/Speed

20.4Kg.cm/0.16sec/60°

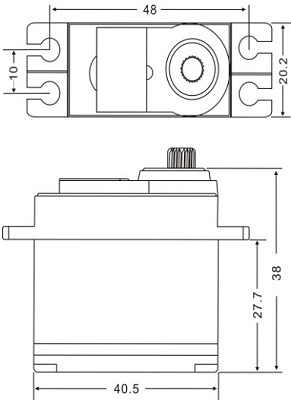

Dimensions

40.5mm X 20.2mm X 44.2mm

Gears

Precision Metal Gear

Bearings

2x Dual Ball Raced

Weight

55.6g / 1.96oz

Servo Arm

Futaba Compatible 25 Teeth

Wire Length

265mm / 10.4"

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
4M-556DMG-173 1pcs of 4M-556DMG-173 Standard Sized,
Metal Geared Digital, Dual Ball Raced Servo
£17.84
4M-556DMG-173 5pcs of 4M-556DMG-173 Standard Sized,
Metal Geared Digital, Dual Ball Raced Servo
SAVE £8.90
£80.30
(£16.06 ea)
