Specification

Operating Voltage Range

4.8 ~ 6.0VDC

4.8V Operating Torque/Speed

10.8Kg.cm/0.13sec/60°

6.0V Operating Torque/Speed

13.8Kg.cm/0.11sec/60°

4.8V Idle/Stall Current

800mA / 2.4A

6.0V Idle/Stall Current

1100mA / 3.0A

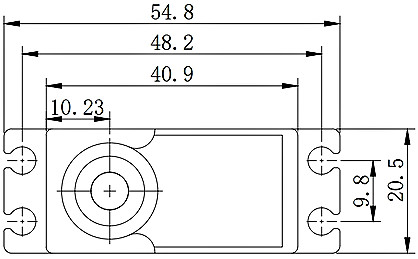

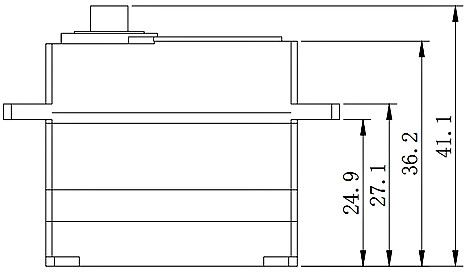

Dimensions

40mm x 36mm x 20mm

Gears

Titanium Gear

Gear Play

Low

Weight

49g / 0.108oz

Wire Length

250mm / 9.8" (JR Colours)

Bearings

2x Ball Raced

Operational Temperature

-20°C to +60°C

Refresh Rate

333Hz

Pulse Width

500 - 2500µSec

Neutral Position

1500µSec

Precision

3µSec
