Specification

Operating Voltage Range

4.8 ~ 8.4VDC

4.8V Operating Torque/Speed

4.4Kg.cm/0.101sec/60°

6.0V Operating Torque/Speed

6.5Kg.cm/0.078sec/60°

7.4V Operating Torque/Speed

7.3Kg.cm/0.059sec/60°

4.8V Running/Stall Current

230mA / 900mA

6.0V Running/Stall Current

350mA / 1.05A

7.4V Running/Stall Current

400mA / 1.2A

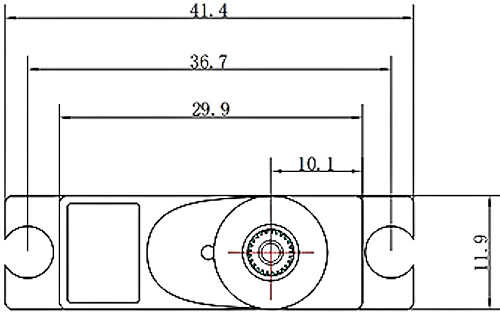

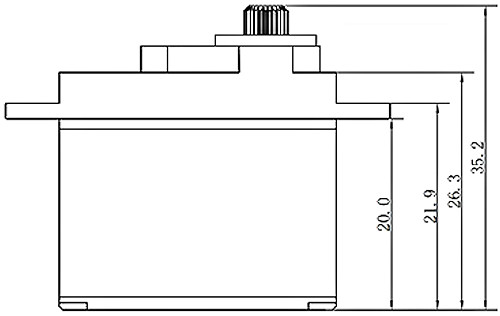

Dimensions

29.9mm x 26.3mm x 11.9mm

Gears

Metal Gear

Motor

DC Core

Weight

18.3g / 0.06oz

Wire Length

180mm / 7" (JR Colours)

Bearings

2x Ball Bearing

Operational Temperature

-20°C to +60°C

Refresh Rate

333Hz

Pulse Width

500 - 2500µSec

Dead Band

2µSec

Neutral Position

1500µSec

Precision

2µSec
