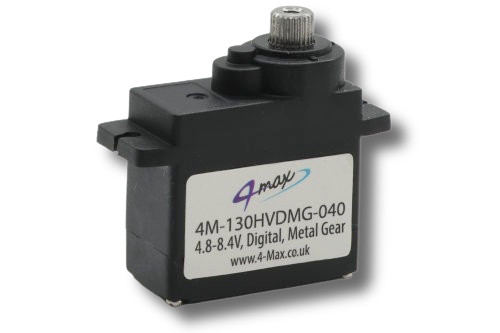

4-Max 4M-130HVDMG-040 Micro 13g
Digital, Metal Geared,
Double Ball Raced Servo. 3.8Kg/4.0Kg/4.5Kg/4.9Kg Pull
From £10.99!

4M-130HVDMG-040

All Servos come with a full set of arms and accessories

4-Max 4M-130HVDMG-040 Micro 13g
Digital Metal Geared Double Ball Raced Servo. 3.8Kg/4.0Kg/4.5Kg/4.9Kg Pull

Comes with long servo arm (hole to hole 53mm) ideal for aerobatic models

Digital, High Voltage Servo Metal Gear ideal for light weight indoor models, EPP, F3P, F3K, F3L, F5L, Glider, indoor plane, RC Car, Helicopter, Robot

Specification
Operating Voltage Range	4.8 ~ 8.4VDC
5.0V Operating Torque/Speed	3.8Kg.cm/0.112sec/60°
6.0V Operating Torque/Speed	4.0Kg.cm/0.096sec/60°
7.4V Operating Torque/Speed	4.5Kg.cm/0.083sec/60°
8.4V Operating Torque/Speed	4.9Kg.cm/0.078sec/60°

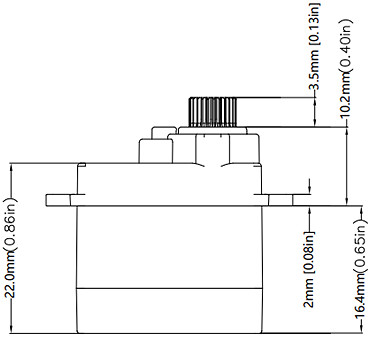

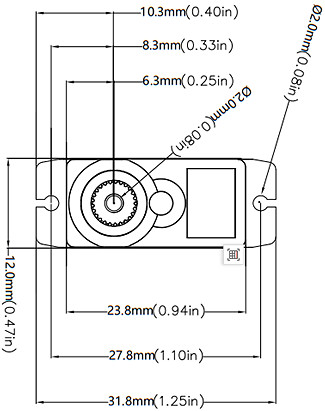

Dimensions	23.8mm x 22mm x 12mm
Gears	Metal Gear
Gear Play	Very Low
Weight	13g / 0.027oz
Wire Length	180mm / 7" (JR Colours)
Bearings	1
Operational Temperature	-20°C to +60°C
Refresh Rate	333Hz
Pulse Width	500 - 2500µSec
Dead Band	3µSec
Neutral Position	1500µSec
Precision	2µSec

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.

Part Number	Description	Price	Quantity
4M-130HVDMG-040	1pcs of 4M-130HVDMG-040 Digital Metal Geared Digital Micro Servo	£12.21
4M-130HVDMG-040	5pcsof 4M-130HVDMG-040 Digital Metal Geared Digital Micro Servo SAVE £6.10	£54.95 (£10.99ea)
4M-130-HARDWARE	Spare hardware set for 130HVDMG-040 5x horns, 2x mounting screws, 1x head screw	£1.99
