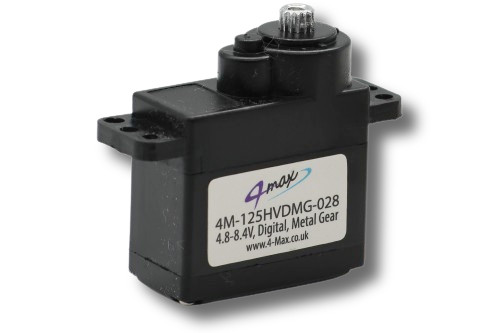

4-Max 4M-125HVDMG-028 Micro 12.5g
Digital, Metal Geared, Ball Raced Powerful Servo 2.8Kg/3.4Kg/4.5Kg Pull
From £10.99!

4M-125HVDMG-028

All Servos come with a full set of arms and accessories

4-Max 4M-125HVDMG-028 Micro 12.5g
High Power, Digital, Metal Geared Ball Raced, Servo. 2.8Kg/3.4Kg/4.5Kg Pull

Precision Speed and Durability

This servo is an ideal choice for EPP, F3P, Gliders, Cars, Helicopters, Robots, Aircraft and is a great alternative to the Hitec HS-65 servo

Specification
Operating Voltage Range	4.8 ~ 7.4VDC
4.8V Operating Torque/Speed	2.8Kg.cm/0.144sec/60°
6.0V Operating Torque/Speed	3.4Kg.cm/0.111sec/60°
7.4V Operating Torque/Speed	4.5Kg.cm/0.105sec/60°
4.8V Idle/Stall Current	220mA / 900mA
6.0V Idle/Stall Current	240mA / 1.05A
7.4V Idle/Stall Current	300mA / 1.2A

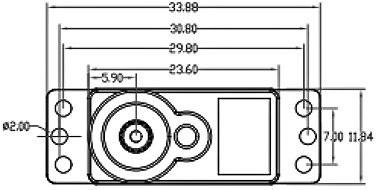

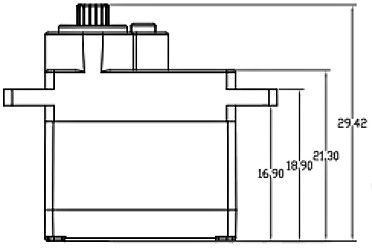

Dimensions	23.6mm x 21.3mm x 11.8mm
Gears	Metal Gear
Gear Play	Very Low
Weight	12.5g / 0.027oz
Wire Length	180mm / 7" (JR Colours)
Bearings	2x Ball Raced
Operational Temperature	-20°C to +60°C
Refresh Rate	333Hz
Pulse Width	500 - 2500µSec
Dead Band	3µSec
Neutral Position	1500µSec
Precision	2µSec

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.

Part Number	Description	Price	Quantity
4M-125HVDMG-028	1pcs of 4M-125HVDMG-028 Digital Metal Geared Micro Servo	£11.10
4M-125HVDMG-028	5pcsof 4M-125HVDMG-028 Digital Metal Geared Micro Servo SAVE £5.55	£49.95 (£9.99ea)
4M-125-HARDWARE	Spare hardware set for 4M-125HVDMG-028 3x horns, 2x mounting screws, 1x head screw	£1.49
