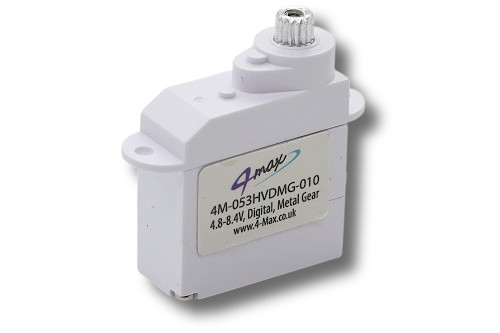

4-Max 4M-053HVDMG-010 Sub-Micro 5.3g
Digital, High Voltage, Metal Geared, High Speed,
Double Ball Raced Servo. 1Kg/1.5Kg Pull
From £9.99!

4M-053HVDMG-010

All Servos come with a full set of arms and accessories

4-Max 4M-053HVDMG-010 Sub-Micro 5.3g
Digital, High Voltage Metal Geared Double Ball Raced Servo. 1Kg/1.5Kg Pull

Comes with long servo arm (hole to hole 40mm) ideal for indoor aerobatic models

Digital, High Voltage Servo Metal Gear ideal for light weight indoor models, EPP, F3P, F3K, F3L, F5L, Glider, indoor plane, RC Car, Helicopter, Robot

Specification
Operating Voltage Range	4.8 - 8.4VDC
4.8V Operating Torque/Speed	1Kg.cm/0.09sec/60°
6.0V Operating Torque/Speed	1.5Kg.cm/0.08sec/60°
7.4V Operating Torque/Speed	1.8Kg.cm/0.07sec/60°
4.8V Idle Current	110mA
6.0V Idle Current	130mA
7.4V Idle Current	150mA

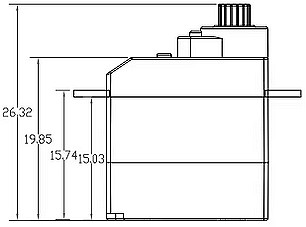

Dimensions	19.6mm x 19.8mm x 8.3mm
Gears	Metal Gear
Gear Play	Low
Weight	5.3g / 0.012oz (inc wire & plug)
Wire Length	180mm / 7" (JR Colours)
Bearings	1
Operational Temperature	-20°C to +60°C
Refresh Rate	333Hz
Pulse Width	500 - 2500µSec
Dead Band	5µSec
Neutral Position	1500µSec
Precision	2.5µSec
Gear Play	Low

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.

Part Number	Description	Price	Quantity
4M-053HVDMG-010	1pcs of 4M-053HVDMG-010 Digital, High Voltage Metal Geared Double Ball Raced Digital, High Voltage Sub-Micro Servo	£11.10
4M-053HVDMG-010	5pcsof 4M-053HVDMG-010 Digital, High Voltage Metal Geared Double Ball Raced Digital, High Voltage Sub-Micro Servo SAVE £5.55	£49.95 (£9.99ea)
4M-053-HARDWARE	Spare hardware set for 4M-053HVDMG-010 3x horns (not extra long arm), 2x mounting screws, 1x head screw	£1.49
