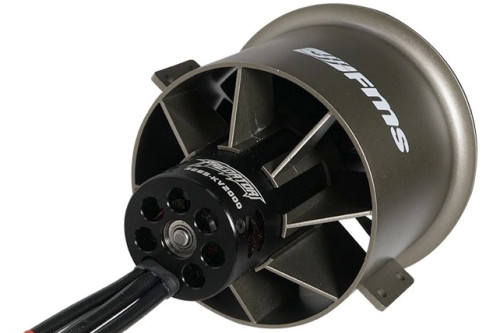

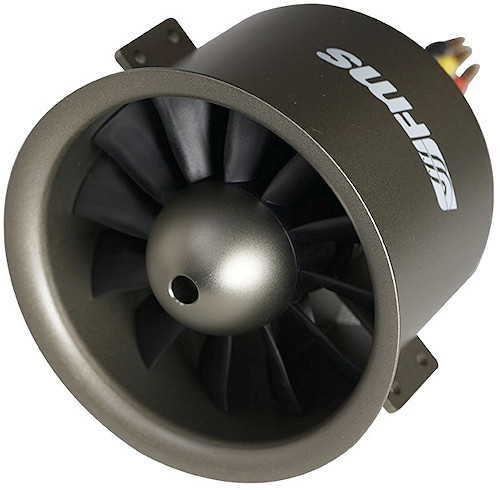

80mm 12 Blade FMS EDF Fan suitable for 6S LiPo Setups

This is the new V3 version which uses a 2000kv 3665 Inrunner motor which gives greater thrust for less Amps

FMS 80mm V3 Pro Metal EDF is made of die-casting CNC.
The Impeller is a high strength nylon fiber composite.

The total weight of the EDF is 380g

The 12 Blade design gives great efficiency and a wonderful "jet like" sound.

Designed by professional aerodynamicist and tested in the prestigious Baihang University.

Supplied with 2000kv inrunner motor and dynamicially balanced at the factory..

Motor Features:

• 4 poles 12 slots high torque motor design
• Ultra low resistance windings, maximum efficiency
• High temperature (up to 200°C)
• High-speed ABEC5 ultra-durable Japanese (NMB) imported sealed, low friction, low noise and high accuracy bearings
• Dynamically balanced Impeller, extremely low vibration

Performance

Note:

Do not run on 7S or above

There may be some scratches on the inner wall surface of the duct. This happens in the factory testing and balancing process. The scratches have no affect on performance.

We will not accept units back because of this scratching
