ToolkitRC Q6AC, Dual Input, Quad Output
(400W-AC) / (1000W-DC)
LiPo, LiHV, LiFe, Li-Ion, LTO, Ni-Mh, PB
Smart Charger


ToolkitRC Q6AC Charger

ToolkitRC Q6AC Charger

ToolkitRC Q6AC Charger

ToolkitRC Q6AC Charger

ToolkitRC Q6AC Charger

Share on your Facebook Page

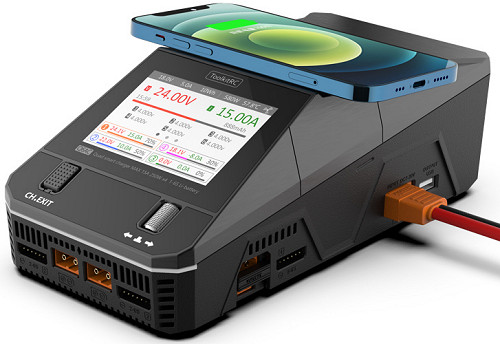

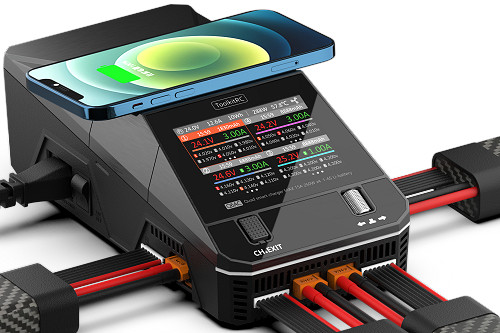

The ToolkitRC Q6AC is a Dual Input, Quad Output
Very Powerful Smart Charger

The Q6ACs core function is being a very high power 4 channel battery charger.

It offers various charging modes, including storage charge. It also has a mode for testing the internal resistance measurements of batteries.

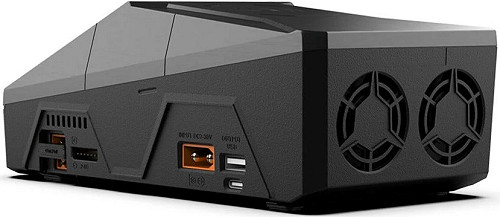

The charger can be powered from AC or DC, so you can use it at home on mains power or at the field from a DC supply (input via XT90 connector).

The charging power output on AC is up to 400W (Total) and on DC with a suitable power supply up to 1000W (Total).

The Q6AC has intuitive menus and is easy to navigate thanks to a simple scroll wheel.

The ToolkitRC Q6AC charger is a must have for anyone who wants an all-in-one powerful Dual Input charger with Quad Outputs.

  • Lipo, LiHV, LiFe, Lion, LTO 2-6S,
    NiMh 1-16S
    Pb 1-10S
  • Balance Lithium cells (800mA)
  • Charging Mode
    250W @MAX 15A*4 DC IN
    200W @MAX 15A*2 AC IN
    100W @MAX 15A*4 AC IN
    500W @MAX 25A CH2+CH3 SYNC
  • Discharging Mode
    250W @MAX 15A Recycle mode
    12W@3A Normal mode
  • Wireless phone charging

Specifications

  • Input: DC 7-30V, MAX 50A
    Input: AC AC100-240V, MAX 5A (100W)
  • Battery Types: Lipo  LiHV  LiFe 1-6S. NiMh 1-16S. PB 1-10S
  • Dimensions: 220 x 113 x 82 mm
  • Weight: 1120g
  • LCD: 3.5 inch RGB, 480 x 320 Pixel
  • USB-A = 30W or Upgrade
  • USB-C = MAX 65W@20.0V PD QC PPS AFC FCP SCP PE SFCP

Includes

1 x TookitRC Q6AC Charger
1 x USB Data Cable
1 x Mains power cord with UK plug
1 x Manual

Please click here to download the ToolkitRC Q6AC manual

Part Number Description Price Quantity
ToolkitRC Q6AC Charger ToolkitRC Q6AC Charger £175.99
4Max
Click on photo for
larger image
JST-XH Balance Board
2-6S LiPo Balance Board with
JST-XH balance connectors
(recommended)
£3.99
XT60 Multi Way Charge Cable
Click on photo for
larger image
XT60 Multi Way Charge Cable
XT60 Multi-connector charge cable
(XT60, Deans, JR and JST-BEC)
(Recommended)
£7.50
XT60H Connectors
Click on photo for
larger image
XT60 Connectors
XT-60 type connectors
(5 off male & 5 off female)
(Comes with terminal covers)
£5.99
4mm bullet to XT60 Input Power Cable
Click on photo for
larger image
4mm bullet to XT60 Input Power Cable
4mm bullet to XT60 Input Power Cable £2.99
4mm bullet to XT60 Input Power Cable
Click on photo for
larger image
4mm bullet to XT60 Input Power Cable
Crocodile Clips to XT60 Input Power Cable
14AWG, 1000mm
£5.99
XT60 to DEANS Charging Cable
Click on photo for
larger image
XT60 male to DEANS Male Charging Cable, 14AWG, Approx 300mm long
XT60 Female to DEANS Male Charging Cable, 14AWG, Approx 300mm long £3.99
XT60 male to XT60 Female chargin g cable
Click on photo for
larger image
XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long
XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long £3.99
XT60 Male to XT90 Female charging Cable
Click on photo for
larger image
XT60 Male to XT90 Female Charging Cable, 12AWG Approx. 300mm long
XT60 Female to XT90 Female Charging Cable, 12AWG, Approx 300mm long £4.99
ToolkitRC P200 Power Supply ToolkitRC P200 Power Supply £99.99
