ToolkitRC M4Q Multifunction Quad O/P Charger,
Up to 200W on DC and 100W on AC
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)

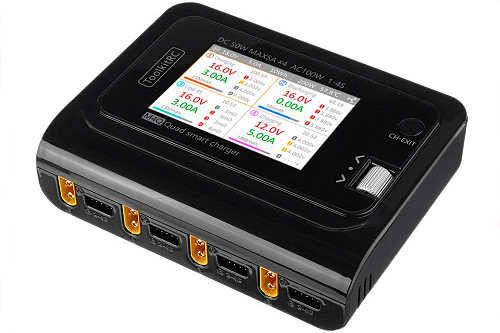

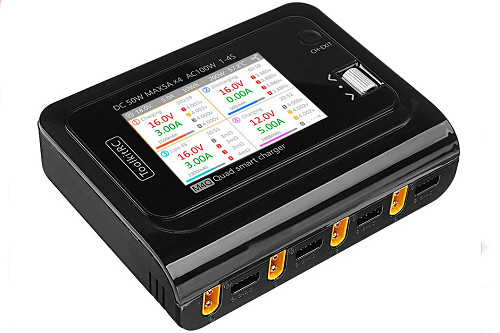

The ToolKitRC M4Q is a Fully Featured Multifunctional Quad Output Charger

The ToolKitRC M4Q is a 4 in1 charger that has 4x 50W charging circuits inside when powered by DC (4x 25W when powered by AC).

This allows you to balance charge 4 batteries at the same time.  The ToolKitRC M4Q charger also features an internal power supply so you can just plug it into your nearest mains socket.

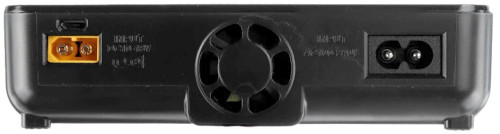

It also includes a XT60 DC input connector to enable charging whilst at the field.

Features

• Quad Output
• Dual Input
• 3.5" LCD screen

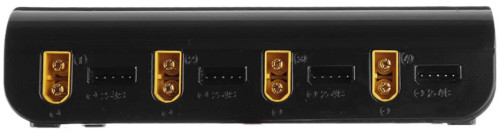

• JST-XH balance connectors

Specification

• Input voltage: AC100-240V, DC10-18V
• Output Connectors: XT60
• Battery Type: LiPo LiHV LiFe Lion@1-4S
  NiMh @1-10S Pb @1-8S
• Balance Cur. : 240mA @1-4S
• Accuracy: <0.005V
• Charging Power:
  0.1-5A@50Wx4 DC
  0.1-5A@50Wx2 AC
  0.1-5A@25Wx4 AC
• Discharging Power:
  0.1-15A@250Wx2 Recycle Mode
  0.1-3A@12Wx2 Normal Mode
• USB: 2.1A@5V upgrade able
• Voltage Range: 1.0V-5.0V @1-4S
• Battery Internal Resistance: 1-100mR @1-4S
• Display: LCD IPS 3.5 inch 480x320 resolution
• Size: 160mm*160mm*46mm
• Weight: 600g

Includes (see above photo)

1 x TookitRC Charger
1 x USB Cable
1 x Manual

Please click here to download the ToolkitRC M4Q manual

Part Number	Description	Price	Quantity
ToolkitRC M4Q Charger	ToolkitRC M4Q Quad Output Charger	£84.99
JST-XH Extension 2S	JST-XH Extension Cable - 2S	£1.00
	JST-XH Extension Cable - 3S	£1.20
	JST-XH Extension Cable - 4S	£1.30
Click on photo for larger image XT60 Multi Way Charge Cable	XT60 Multi-connector charge cable (XT60, Deans, JR and JST-BEC) (Recommended)	£7.50
Click on photo for larger image XT60 Connectors	XT-60 type connectors (5 off male & 5 off female) (Comes with terminal covers)	£5.99
Click on photo for larger image 4mm bullet to XT60 Input Power Cable	4mm bullet to XT60 Input Power Cable	£2.99
Click on photo for larger image 4mm bullet to XT60 Input Power Cable	Crocodile Clips to XT60 Input Power Cable 14AWG, 1000mm	£5.99
Click on photo for larger image XT60 male to DEANS Male Charging Cable, 14AWG, Approx 300mm long	XT60 Female to DEANS Male Charging Cable, 14AWG, Approx 300mm long	£3.99
Click on photo for larger image XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long	XT60 Male to XT60 Female Charging Cable, 14AWG, Approx 300mm long	£3.99
Click on photo for larger image XT60 Male to XT90 Female Charging Cable, 12AWG Approx. 300mm long	XT60 Female to XT90 Female Charging Cable, 12AWG, Approx 300mm long	£4.99
ToolkitRC P200 Power Supply	ToolkitRC P200 Power Supply	£99.99
