SKYRC BD250 Battery Discharger
250W up to 35A*

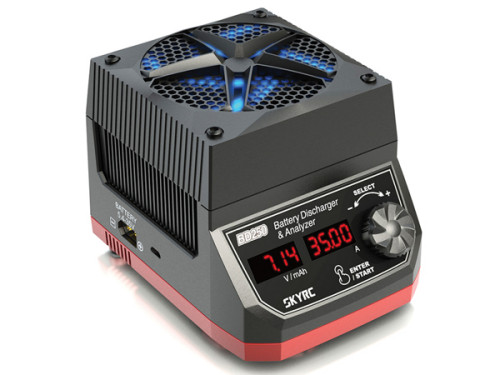

The SKYRC BD250 is a 250W Battery Discharger

The BD250 is designed to discharge your batteries to a user set level quickly

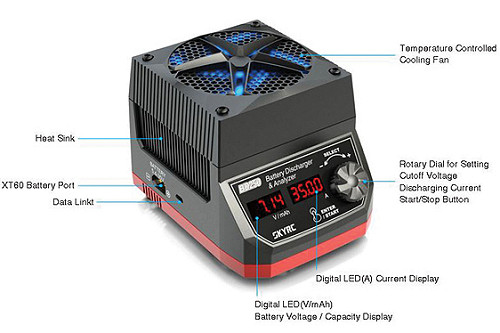

Features

• Up to 35A Discharge Current*
• 250W Max Discharge Watts
• Heat activated cooling fan
• Smart Modern Design
• Analyse battery performance

Specification

• Input: 5.4 - 35V DC (2S - 8S LiPo)
• Discharge Current Range 0.01A - 35A (see table below)
• Capacity Display Accuracy ± 3%
• Current Display Accuracy 0.01A - 10.0A ± 60mA
• Current Display Accuracy 10A - 35A ± 3%
• Voltage Display Accuracy 5.4V - 10V ± 80mV
• Voltage Display Accuracy 10V - 20V ± 120mV
• Voltage Display Accuracy 20V - 35V ± 160mV
• Size: 136mm x 105mm x 107mm
• Weight: 879g

Includes

1 x SKYRC BD250 Super Discharger
1 x XT60 Cable
1 x Spare Fuse
1 x Manual

Please click here to download the SKYRC BD250 Discharger manual

Part Number	Description	Price	Quantity
SKYRC BD250 Discharger	SKYRC BD250 Discharger	£119.99
Click on photo for larger image XT60 Multi Way Charge Cable	XT60 Multi-connector charge cable (XT60, Deans, JR and JST-BEC)	£7.50
Click on photo for larger image XT60 Connectors	XT-60 type connectors (5 off male & 5 off female) (Comes with terminal covers)	£5.99
