A2212-1400kv

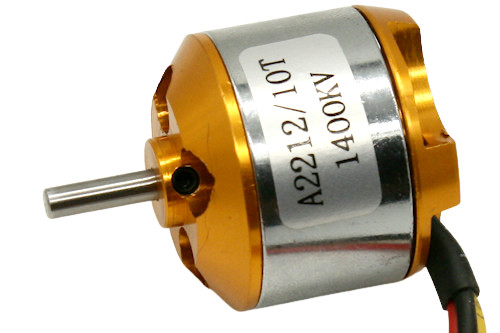

A2212-1400 Brushless Motor from 4-Max

Drawing for A2212-1400 Brushless Motor from 4-Max

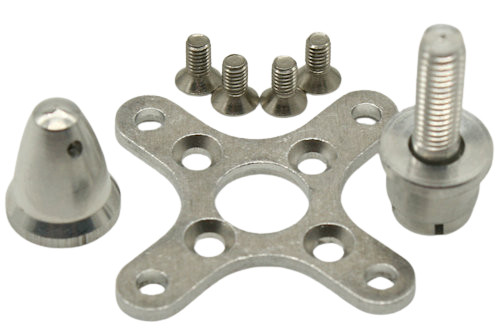

Motor comes with 3.5mm male connectors (fitted)
and rear motor mount and prop driver

Motor Specifications
Part Number	A2212-1400kv
RPM/Volt with no Load	1400kv
Diameter	28mm
Length	27mm
Weight	53g inc wires and connectors
Shaft Diameter	3.175mm (3.2mm)
Shaft Length	11mm
Bulkhead to Prop Length	40.5mm
Voltage Input Range	6V ~ 12.6 (2-3 LiPo Battery)
Connectors	3x 3.5mm Gold plated male bullet connectors
Thrust/Speed	555g/1.22lbs Using a GWS 8x4 prop at 11.1V (9.0A). Est Speed 43MPH
Suitable Battery	3S 1300mA / 3S 1800mA

Motor Part Number	F	G	H
A2212-*	40mm	N/A	2mm

All Dimensions are approximate

Part Number	Price	Quantity
A2212-1400	£15.49
Spares & Accessories
Collet Style Prop Driver	£2.75

Brushless Electronic Speed Controllers (ESC's)
LiPo Batteries
Propellers
