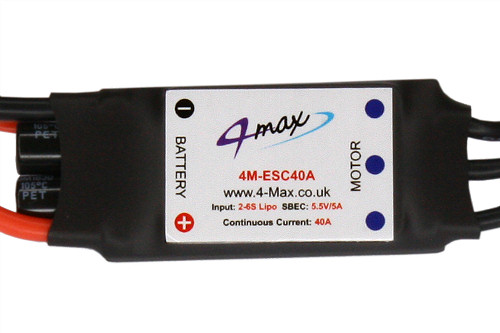

40A ESC (Brushless Electronic Speed Controller)


Please Click for a larger image


Please Click for a larger image

Share on your Facebook Page


Constant Current 40A
Burst Current 50A for 10 Seconds
Input Voltage Range 2-6 LiPo (6 - 25.2V DC)
BEC Voltage Range 2-6 LiPo (6 - 25.2V DC)
BEC Output 5.5V DC @ 5A SBEC
Weight (g) 48g (includes all wires)
Size (mm) 67mm x 26mm x 15mm (includes heatshrink)
Connectors supplied 3x 3.5mm Female connectors fitted on the motor side


  • Easy setting, easy operation using programming card.
  • Safe start-up system. The motor will not start no matter which position the throttle stick is when the battery is connected.
  • Automatic power cut-off. If the motor suddenly stops rotating or the radio signal is lost for more than 3 seconds, the power will automatically be cut off.
  • BEC provides power to receiver and servos (for ESC with BEC).
  • High rate switching Pulse Width Modulation (PWM): 16KHZ.
  • Over-heat protection. User set via the program card. 90°C - 140°C (7 choices)
  • Over-voltage protection.
  • Low-voltage cut-off. 2.9V - 3.5V User set via the program card (7 choices)
  • Timing mode; 0-30°(7 choices)
  • Break Strength is programmable via the program card (7 Choices)
  • Start up power is programmable via the program card (7 Choices)
  • Programming is very easy with the programming card.

VERY IMPORTANT - Please follow this setup procedure for your 4-Max 4M ESC

Part Number Description Price Qty
4M-ESC40A 40A Brushless Electronic Speed controller £28.95
4M-PROGCARD Programming Card £9.50
