100A Multifunction Budget Watt Meter
& Power Analyser


Share on your Facebook Page

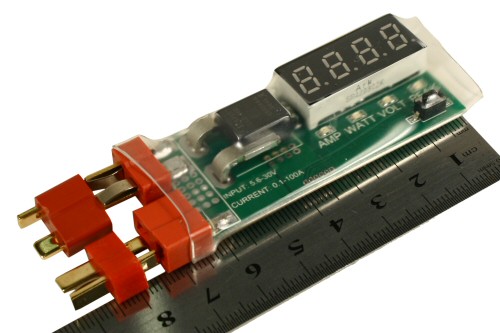

100A Budget Multifunction Watt Meter and Power Analyser

A Watt Meter is an essential piece of equipment for anyone into electric flying as it can save you a fortune. Use it to analyise your setup to ensure you are not overloading your motor, ESC or battery.

It features a battery voltage alarm function and can be installed in your model to measure real-time current, voltage and watts.
It also records the maximum current, and maximum watts along with the minimum voltage of the pack as long as the battery is applied.

  • Operating voltage range: 5.6V-30V
  • Current measuring range: 0.1A-100A
  • Current accuracy: 0.1A
  • Alarm voltage setting range: 6.6V-40V
  • Alarm Voltage Setting step: 0.1V
  • 75 x 30 x 10mm
  • 19g

Please click here to download the user manual for this Watt Meter

Part Number Description Price Quantity
PP-WATTMETER-BUDGET Budget Watt Meter & Power Analyser £14.99
