Motor Setup for 72" De Havilland Mosquito
By Tony Nijhuis as Featured on the
2015 RCM&E Special

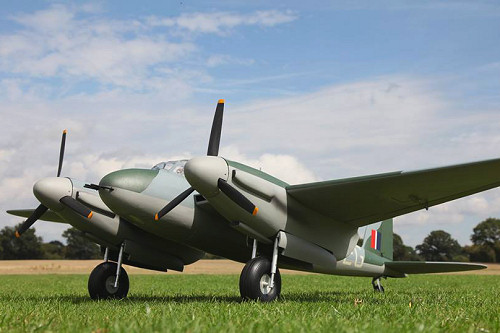

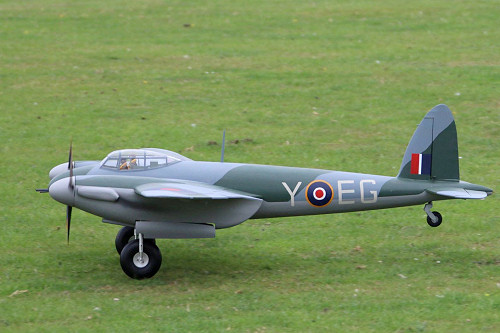

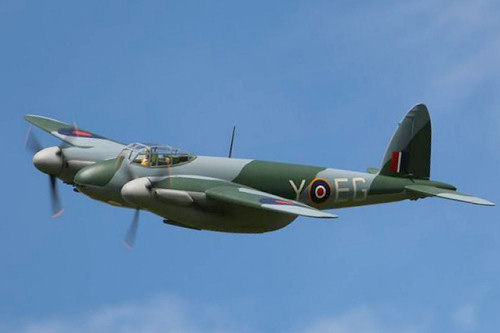

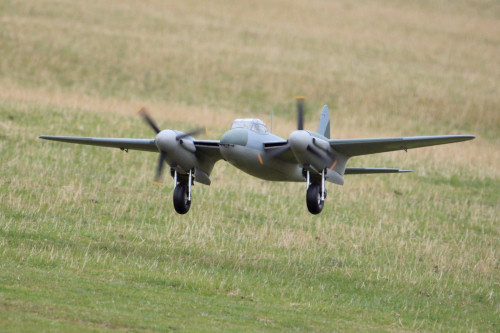

Tony Nijhuis DeHavilland Mosquito

Tony Nijhuis DeHavilland Mosquito

Tony Nijhuis DeHavilland Mosquito

Tony Nijhuis DeHavilland Mosquito

Share on your Facebook Page

Click here to visit Tony Nijhuis Designs

How to wire up multiple brushless motors

Please Note Due to having our knuckles severely rapped by the Post Office we can no longer send any kind of battery via the post. Any order containing batteries will have to be sent via courier and this will incur a minimum of a £9.49 delivery and packaging charge.
We can not deliver batteries outside of mainland UK



Item Part Number Description Price Quantity
Motor 2 x PO-5055-595 2 x Brushless Motor
Recommended Prop
14" x 7"
on 4S
£122.00 Out of Stock
ESC and
Programming
card
2 x PP-TESC60AU
1 x PP-PROGCARD
2 x 60 Amp Brushless Speed Controller and 1 x Programming card £96.89
Prop 1 x Master Airscrew
3 blade 14"x7"
Standard Rotation
1 x Master Airscrew
3 blade 14"x7"
Standard Rotation
£16.99
Prop 1 x Master Airscrew
3 blade 14"x7"
Opposite Rotation
1 x Master Airscrew
3 blade 14"x7"
Opposite Rotation
£16.99
Batteries 2 x PPL-40C4S-3700 2 x 4 Cell, 14.8V, 40/80C
3,700mAh LiPo Batteries
£95.98
UBEC 1 x PP-UBEC5A 5A UBEC to Power your receiver and Servos £9.99
Battery 1 x PPL-40C3S-1800 3S, 11.1V LiPo Battery to power the UBEC which powers the receiver and servos £16.99
Servos and
Servo
Extensions
  4x XL-16HM Servo
3x XL-37HB Servo
2x 600mm Servo Extension
7x 300mm Servo Extension
1x 900mm Servo Extension
4x 150mm Y Leads
£89.09
