Electric Setup for Tony Nijhuis
26" EDF MIG15
RCM&E Special 2018

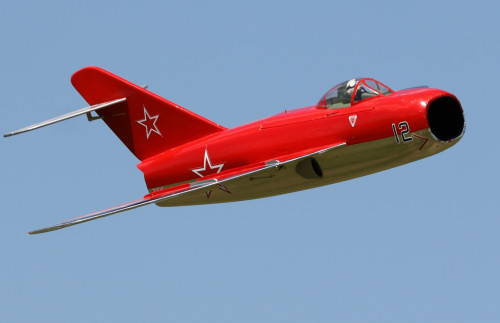

Tony Nijhuis 26 Inch EDF MIG15

Tony Nijhuis 26 Inch EDF MIG15

Please Note: These models were designed for the old AEO fans.

These PowerFun and FMS fans are nearly twice as powerful but are slightly larger (approx. 2mm) so small modifications will be necessary to get these fans to fit

Tony Nijhuis 26 Inch EDF MIG15

This is a better and more powerful unit then Tony used on his prototype.

Share on your Facebook Page

Click here to visit Tony Nijhuis Designs

These EDF units are made using all composite construction and are injected molded which produces a very light weight (75g) yet incredibly strong and ridged assembly. all units are dynamicially balanced at the factory which results in a superior and low vibration assembly which also leads to higher effeciency.

The 11 Blade design gives great effeciency and a wonderful"jet like" sound which rivals and Metal EDF currently available.

Designed by professional aerodynamicist and tested in the prestigious Baihang University.

Supplied with 2627-5400kv outrunner motor.

Features

  • Pre-assembled
  • Factory dynamically balanced
  • High power with superior cooling
  • "Jet Like" Sound
  • High quality construction
  • Fully serviceable
  • Fast to fit

Specifications

  • Thrust Power: 650g at 12.5V (40A)
  • Inner: Diameter: 50mm
  • Outer Diameter: 52.5mm
  • Overall Length: 73.5mm
  • ESC (timing): High

Note:

The motor only support 3S battery, but the ducted fan support 4S battery (need to use different motor).

There may be some scratches on the inner wall surface of the duct. This happens in the factory testing and balancing process. The scratches have no affect on performance.

We will not accept units back because of this scratching



Please Note Due to having our knuckles severely rapped by the Post Office we can no longer send any kind of battery via the post. Any order containing batteries will have to be sent via courier and this will incur a minimum of a £9.99 delivery and packaging charge.
We cannot deliver batteries outside of mainland UK



3S LiPo Setup



Part Number Description Price Quantity
PF 50mm EDF
(3S LiPo) 640g Thrust
50mm, 11 Blade Fan unit, pre assembled with high power Outrunner 5400kv brushless motor £37.79
FMS 50mm EDF
(3S LiPo) 620g Thrust
50mm, 11 Blade Fan unit, pre assembled with high power Outrunner 5400kv brushless motor £41.58
4M-HESC50AV2 50A Brushless ESC
and Programming Box
£57.94
3x 4M-045DH-005 3pcs of 4.5g, 0.6Kg, Digital Servo £14.16
3x EMAX ES9051 3pcs of 4.1g, 0.8Kg, Digital Servo £20.97
3x 4M-056DHVMG-009 3pcs of 5.6g, 0.9Kg,
Metal Geared Digital Servo
£29.82
PPL-60C3S-1800 3S, 1800mAh 60C LiPo Battery £21.75
PPL-60C3S-2200 3S, 2200mAh 60C LiPo Battery £23.50
PPL-60C3S-2600 3S, 2600mAh LiPo Battery 60C £30.00 Out of Stock
Lightweight snake 39" Lightweight SLEC snake £1.99
PP-HATCH-LATCH-A Hatch Latch/Canopy Catch £1.99
David-Razor-Plane David Razor Plane £16.99
David-Razor-Spare-Blades Pack of 10 spare blades for the David Razor Plane £7.69
Click here for our range of glues and covering materials




4S LiPo Setup



Part Number Description Price Quantity
FMS 50mm EDF
(4S LiPo) 1086g Thrust
50mm, 11 Blade Fan unit, pre assembled with high power Outrunner 4500kv brushless motor £41.58
PF 50mm EDF
(4S LiPo) 765g Thrust
50mm, 11 Blade Fan unit, pre assembled with high power Outrunner 4300kv brushless motor £32.39
4M-HESC50AV2 50A Brushless ESC
and Programming Box
£57.94
3x 4M-045DH-005 3pcs of 4.5g, 0.6Kg, Digital Servo £14.16
3x EMAX ES9051 3pcs of 4.1g, 0.8Kg, Digital Servo £23.07
3x 4M-056DHVMG-009 3pcs of 5.6g, 0.9Kg,
Metal Geared Digital Servo
£29.82
PPL-40C4S-1800 4S, 1800mAh LiPo Battery. 40C £30.00
PPL-60C4S-2200 4S, 2200mAh LiPo Battery. 60C £33.50
PPL-60C4S-2600 4S, 2600mAh LiPo Battery. 60C £39.50
Lightweight snake 39" Lightweight SLEC snake £1.99
PP-HATCH-LATCH-A Hatch Latch/Canopy Catch £1.99
David-Razor-Plane David Razor Plane £16.99
David-Razor-Spare-Blades Pack of 10 spare blades for the David Razor Plane £7.69
