Motor Setup for 134" Avro Lancaster by Tony Nijhuis



Click here to visit Tony Nijhuis Designs

Motor comes with 3.5mm male connectors already fitted
plus the mating female halves

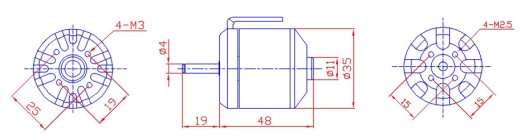

Dia Length Weight Shaft Diameter
35mm 48mm 167g 4.0mm

How to wire up multiple brushless motors

Item Part Number Description Price Quantity
Motor 4 x
PPO-5055-580		 580kv, 6Wind, 1280W, 2-4 LiPo
Recommended Prop on 4S is 13"x 7"
Save £4.00		 £218.00
Rear Mount Set 4 x
PP-MOUNTSET50		 Rear Mount and Prop Driver Set for 50 Series Motors £19.60
ESC 4 x
PP-EESC60A		 60 Amp Brushless Speed Controller £179.80
LiPo Battery 4 x
PPL-30C4S-3300		 4S, 3300mAh LiPo Battery, 30C Cont, 60C Burst £219.96
  TN-COMBO-017 4 Sets of Motor + ESC + Rear Mount Set + Prop + LiPo - Save £30.00 £630.96
  TN-COMBO-018 4 Sets of Motor + ESC + Rear Mount Set + Prop - Save £15.00 £426.00
