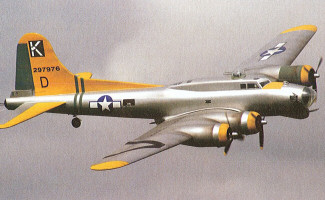

Motor Setup for 72" Boeing B-17 Flying Fortress
by Tony Nijhuis




Click here to visit Tony Nijhuis Designs

Motor comes with 3.5mm male connectors already fitted
plus the mating female halves

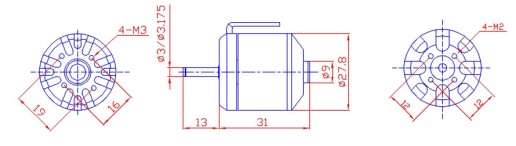

Dia Length Weight Shaft Diameter
27.8mm 31mm 58g 3.175mm

How to wire up multiple brushless motors

This recomendation is for the 2 blade APCE 8x4. Please see below the recomendation for the 3 bladed version.
Item Part Number Description Price Quantity
Motor 4 x
PPO-2831-1300
1300kv, 9 Wind, 210W, 2-4 LiPo
Recommended Prop up to 8" x 4" on 3S
£87.96
Rear Mount Set 4 x
PP-MOUNTSET28
Rear Mount and Prop Driver Set for 28 Series Motors £12.00
ESC 4 x
PP-DESC33AU
33 Amp Brushless Speed Controller £79.80
UBEC 1 x
PP-UBEC4AHV-3
4 Amp UBEC £8.99
LiPo Battery 1 x
PPL-22C3S-5000
3S, 5000mAh LiPo Battery, 22C Cont, 40C Burst £79.99
  TN-COMBO-009 4 Sets of Motor + ESC + Rear Mount Set UBEC + LiPo - Save £10.00 £258.74
  TN-COMBO-010 4 Sets of Motor + ESC + Rear Mount Set + UBEC - Save £5.00 £183.75

This recomendation is for the 3 bladed version.
The 3 bladed props are available from FlightHook
Item Part Number Description Price Quantity
Motor 4 x
PPO-2831-1000
1000kv, 12 Wind, 180W, 2-4 LiPo £87.96
Rear Mount Set 4 x
PP-MOUNTSET28
Rear Mount and Prop Driver Set for 28 Series Motors £12.00
ESC 4 x
PP-DESC33AU
33 Amp Brushless Speed Controller £79.80
UBEC 1 x
PP-UBEC4AHV-3
4 Amp UBEC £8.99
LiPo Battery 1 x
PPL-22C3S-5000
3S, 5000mAh LiPo Battery, 22C Cont, 40C Burst £79.99
  TN-COMBO-026 4 Sets of Motor + ESC + Rear Mount Set UBEC + LiPo - Save £10.00 £258.74
  TN-COMBO-027 4 Sets of Motor + ESC + Rear Mount Set +UBEC - Save £5.00 £183.75
