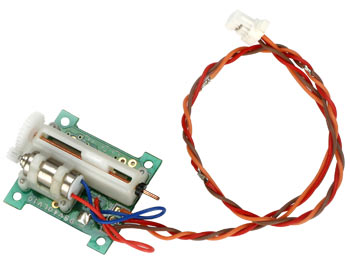

Spektrum AS2000L 1.5g Micro Linear Servo
(SPMAS2000L)

Spektrum AS2000L 1.7g Micro Linear Servo (SPMAS2000L)

Designed to work in conjunction with Spektrum’s AR6400 Ultra-Micro Receiver.
This linear servo plugs into an open port to expand the installation options on your Ultra-Micro aircraft. Each servo comes with a linear servo reverser (SPM6825).
(it is used to program the AR6400 port and is not left in circuit during normal use).

Specification

Size Category: Sub micro
Torque: 79.3 g of force
Stroke: 9.1mm
Speed: 0.14 sec end to end @ 3.7V
Dimensions (WxLxH): 20.8 x 16.9 x 8.2mm
Weight: 1.7 g
Connector Type: 1mm JST-SH
Voltage: 3.7V-4.2V

Key Features

DSM2 compatible—Can be used with AR6400 receiver
Compact footprint—Versatile for ultra-micro models
