EMAX ES09MD Micro 14.8g
Digital, Dual Ballraced, Metal Geared, Servo,
2.3Kg/2.6Kg Pull
From £13.85!

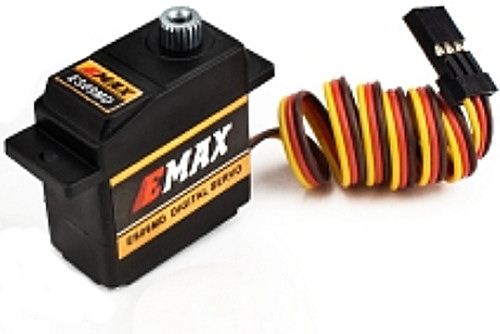

EMAX ES09MD Micro 14.8g Digital Servo

EMAX ES09MD

All Servos come with a full set of arms and accessories

Share on your Facebook Page

Emax ES09MD Micro 14.8g Digital Servo

Specification

Operating Voltage Range

4.8 ~ 6.0VDC

Motor

Standard

4.8V Operating Torque/Speed

2.3Kg.cm/0.12sec/60°

6.0V Operating Torque/Speed

2.6Kg.cm/0.10sec/60°

Dimensions

23mm x 12mm x 24.5mm

Gears

Metal

Weight

14.8g / 0.522oz

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
ES09MD 1pcs of ES09MD Micro, Dual Ball Raced, Metal Geared Digital Servo £15.39
ES09MD 5pcs of ES09MD Micro, Dual Ball Raced, Metal Geared Digital Servo
SAVE £7.70
£69.25
(£13.85ea)
