4-Max 4M-160AH-027 Mini 16g Analog Servo,
2.7Kg.3.0Kg Pull
From £5.66!

4M-160AH-027

4M-160AH-027

All Servos come with a full set of arms and accessories

Share on your Facebook Page

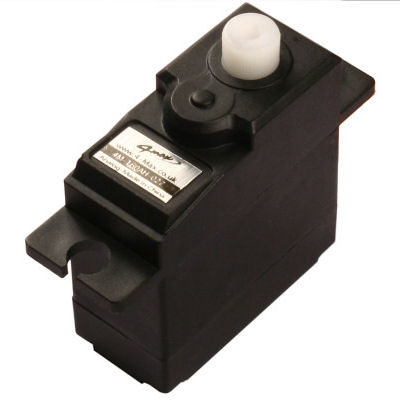

4-Max 4M-160AH-027 Mini 16g Analog Servo

Specification

Operating Voltage Range

4.8 ~ 6.0VDC

4.8V Operating Torque/Speed

2.7Kg.cm/0.13sec/60°

6.0V Operating Torque/Speed

3.0Kg.cm/0.11sec/60°

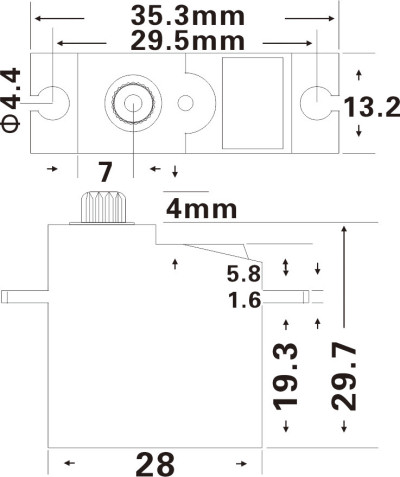

Dimensions

28mm x 13.2mm x 29.7mm

Gears

High Torque Plastic

Weight

16.0g / 0.564oz

Servo Arm

46 Teeth

Wire Length

180mm / 7.08"

We can also supply

MaxLoc™ Connectors , Servo Extension Leads, Servo Accessories.



Part Number Description Price Quantity
4M-160AH-027 1pcs of 4M-160AH-027 Mini Analog Servo £6.29
4M-160AH-027 5pcs of 4M-160AH-027 Mini Analog Servo
SAVE £3.15
£28.30
(£5.66a)
