PPOM-2322-2050


PPOM-2322-2050 Brushless Motor

PPOM-2322-2050 Brushless Motor

Share on your Facebook Page

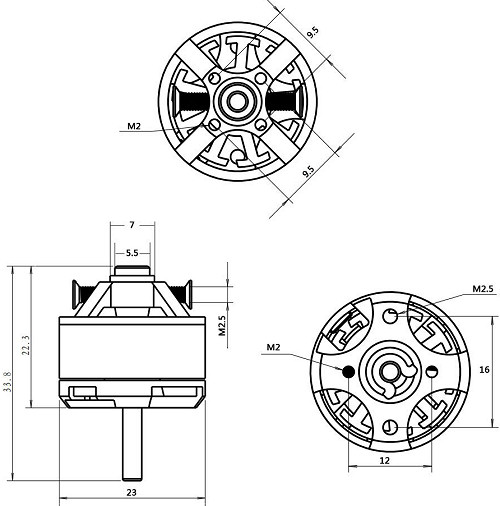

Dia Length Weight Shaft Diameter
23mm 22mm 27g 3mm

Battery: 2-3S
KV: 2050
Max. Power: 14A/150W
Length of front shaft: 11.5mm
Dimension: 23mm x 22mm
Diameter of shaft: 3mm
Weight: 27g 0.9oz (includes connectors)

GWS
Prop
Volts Amps Watts RPM Thrust
(g)
Thrust
(oz)
Efficiency
(g/W)
7x3.5 7.4 6.1 45 11,700 275 9.75 6.09
7x3.5 11.1 10.7 119 15,550 520 18.44 4.38
8x4 7.4 10.3 100 9,240 420 14.89 5.51

We recommend that you only use GWS props with this motor

Part Number RPM/
Volt
Batt Operating
Current
Quantity
PPOM-2322-2050 2050 2-3 LiPo 10A No Longer Available
