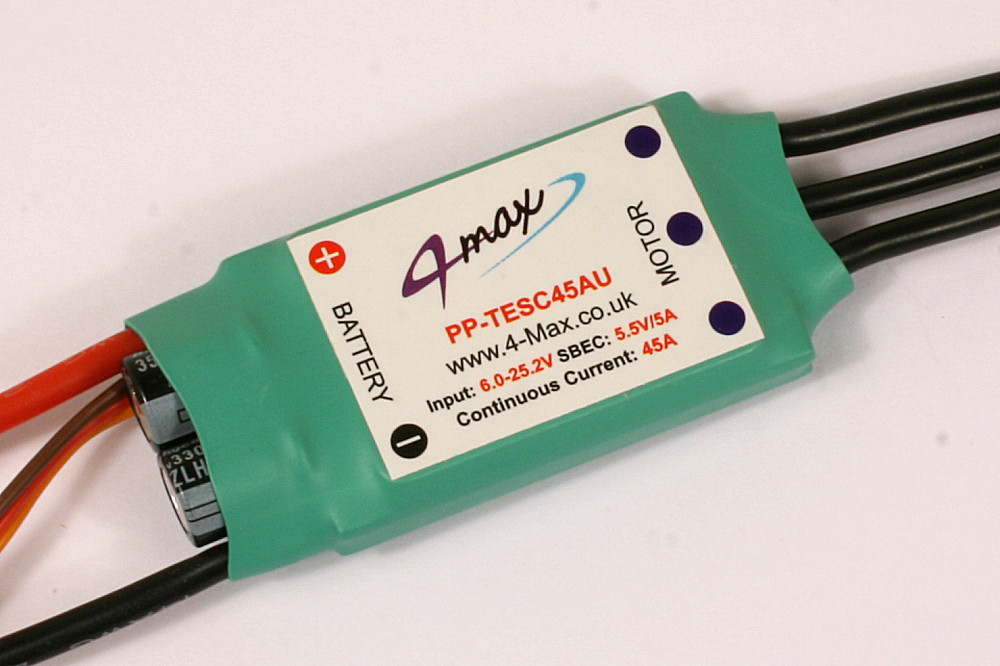

PP-EESC45AU - 45A ESC
(Brushless Electronic Speed Controller)
Probably the best ESC in the World

If the motor spins backwards, swap any two of the three wires that go from the ESC to the motor, it's as simple as that.

Specifications

Please click here for a video demo of its soft starting and linear throttling

Features

• Very Soft Starting – Reduces the stress on the airframe.
• ESC comes with 3 male and 3 female connectors, so no more hunting around for connectors to get your new project in the air.
• Linear Throttle Response – Smooth and progressive throttling over the whole stick movement – easier to fly.
• Switch Mode BEC – Allows the use of the in-built BEC from 2 to 6 LiPo – No Need for separate battery or UBEC.
• Auto Timing – no need for manual selection.
• Low Voltage Cut Off – Protect your batteries from damage due to excessive drain.
• Thermally Protected – The ESC will reduce the output power to the motor depending upon its temperature.
• Signal lost Protection – Upon loss of radio signal the ESC will reduce the output power to 20% for three second and then stop the motor.
• Loss of a Phase Protection – The ESC will stop the motor. The throttle stick has to be returned to the off position for 1 second before the motor will restart.
• Object Striking Protection – The ESC will stop the motor. The throttle stick has to be returned to the off position for 1 second before the motor will restart.
• Power on Protection – The motor will not start unless the throttle stick is in the off position when the power is applied.
• The ESC's come pre-programmed with soft start, brake off and medium timing which is suitable for nearly all inrunners and outrunners
• Simple Parameter Setting.


Programmable Parameters

• Throttle Range – suitable for all transmitters on the market.
• Low Voltage Protection – Highest / Higher / Lower / Lowest. The default is "Lower".
  • For Li-XX, Voltage for each cell is 3.25V / 3.0V / 2.75V / 2.5V. The default is "2.75V" per cell
  • For Ni-XX, Voltages are 70% / 65% / 60% / 55%. The default is "60%" of the voltage on connection
• Battery Type - Li-XX / Ni-XX. The default is "Li-XX".
• Flying Mode - Mode 1 / Mode 2 / Mode 3. The default is "Mode 2". Mode 1 is more efficient but less power. Mode 3 (hard/high timing) is less efficient but more power. Mode 2 (medium timing) gives good efficiency and good power. Outrunners should only be used on either Mode 2 or Mode 3.
• Brake Setting – Enable brake or disable brake. The default is "brake disabled".

Part Number	Rating	Max Amps (10 Sec)	Volts	BEC	Weight	Dimensions in mm	Price	Qty
PP-EESC45AU	45A	60A	2-6 LiPo	5V/6V 3A	40g	60x31x13	£32.95
PP-PROGCARD-E	Programming card for PP-EESC ESC's						£4.50

User Instructions

	45A ESC User Instructions (PP-EESC)
	Programming Card User Instructions for PP-EESC ESC's
