G.T. Power

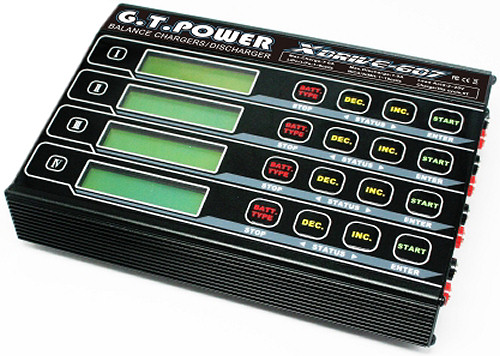

X-Drive 607 Quad Balance Charger
320W (total) 80W per output
Fully Featured Digital Intelligent Multifunctional Balancing Charger/Discharger/Cycler
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)
Superior to the Lipro Quad 6 Balance Charger
High-power and high-performance circuit
It features four totally independent power outputs.
Each can charge up to 80 watts, total power output is 320 watts.
The X-Drive 607 can charge or discharge up to 4 x 15 cells of NiCd/NiMH
or 4 x 6S Lithium batteries. Each output can charge up to 7A (depending
upon cells/watts).
Individual (4) balancers are built in for use with Lithium batteries.
The Lithium cells are also balanced when discharging.
If the voltage of any one cell is outside of specificatio, the charging/discharging
will be stopped for safety reasons with the error message.
Accept various types of Lithium battery.
Lithium battery 'Fast' and 'Storage' mode
'Fast' charge reduces the charging time of Lithium battery and 'Storage'
mode controls the final voltage of the battery to be suit for long
time storage.
Maximum safety for NiCd/NiMh cells
The automatic charging program works on the principle
of the Delta-peak voltage detection for NiCd/NiMH cells.
Auto-charge current limit: When charging NiCd or NiMH at 'AUTO'
current mode, you can set the upper limit of change current to avoid
from high current charging. This is very useful when charging the
low impedance and small capacity NiMH battery in 'AUTO' mode.
Capacity limit: The changing capacity is calculated by multiple
of the charging
current and time. If the charging capacity exceeds the limit the
b attery the charging will be stopped when it reaches the previously
user set value.
Temperature limit: The temperature of the battery on charging will
rise by its internal chemical reaction.
If you set the limit of temperature the charging will stop when
this user set limit is reached.
Processing time limit: you can also set the maximum charging/discharging.
Input power monitor: To protect the car battery you are using to
power the charger.

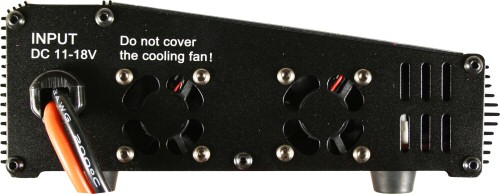

Automatic cooling fan: The cooling fan operates automatically when
the internal temperature of the charger is raised.
Data store/load
For users convenience it can store maximum 5 data
of different batteries. You can
establish the data contains program setting of the battery to charge
or discharge continually. These data can be called out at any time
you need and the process can be executed without program setting.
Cyclic charging/discharging
Perform 1 to 5 cycles of charge/discharge or discharge/charge
continually for battery refreshing and balancing. Not Recommendeded
for Lithium cells.
Features
- Capacity Limit
- Maximum safety
- Temperature monitoring
- Input power monitoring
- Easy to program
buttons
- 5 battery memory
- Individual cell
monitoring
- 2-Line Back lit
LCD display
- Built in Balancer
to 6S packs
- Cycle charging/discharging
- Includes"FAST"
&"STORAGE"
Li-xx programs
Product Details
- Output 320W. 80W per Output
- Discharge 20W. 5W per Output
- Balancing current
300mAh/cell
- Operating input
voltage : 11 - 18V
DC
- Ni-Cad / Ni-MH : 1 - 15 Cells per Output
- Li-Ion / Li-Po / Li-Fe : 1 - 6 Cells per Output
- Charge current : 0.1 - 7.0A per Output
- Discharging current: 0.1 - 1.0A per Output
- PB / Lead Acid
: 2 - 20V

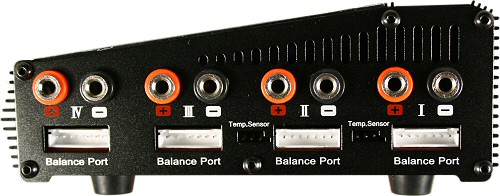

- 4x Built in Cell Ballancer : Up to 6S (series) Li-Po (JST-XH
connectors)
- No. of Cycles
: Up to 5 Cycles
- Weight : 995g
- Dimensions : 230mm x 158mm x 60mm

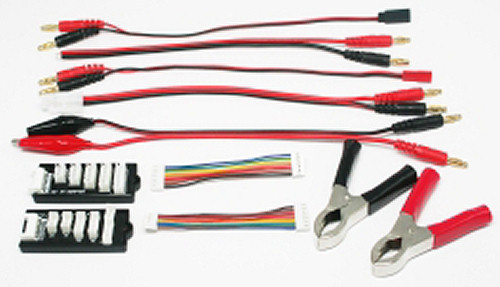

Includes:
1 x Charger
2 x Crocodile Clips to connect to car battery
1 x JST-XH balance boards. We can supply
additional balance boards
1 x TP/FP balance boards. We can supply
additional balance boards
1 x Tamiya charge lead
1 x JST/BEC charge lead
1 x Futaba Rx charge lead
1 x Crocodile charge lead
1 x Bare end 18AWG charge leadle connector cable
1 x Manual
Please
click here to download
the G.T. Power X-Drive 607
manual
|
