The G.T. Power Electronic Switch 7A/10A

Function

This device can be used to switch any DC power source...

• electronic ignition
• smoke
• lighting
• control systems
• shutter control
• Etc

Features

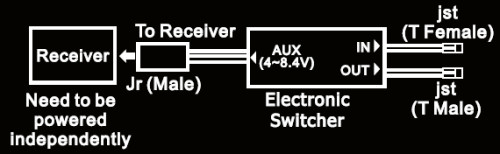

• Power supply control section using the receiver for
  power: DC 4-8.4V
• Input: JST Female 0-40V DC
• Output JST Male: 7A maximum 10A Burst
• Size: 25mm x 10mm x 5mm
• Weight: 8g

Please click here to download the user manual for the G.T. Electronic Switch
