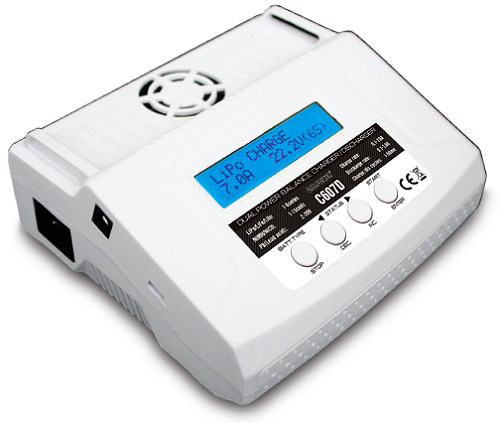

G.T. Power C607D (Dual Input), 80W Fully Featured Digital Intelligent Multifunctional Balancing Charger/Discharger/Cycler
LiPo, Li-lo, Li-Fe (A123M1),
Ni-Cd, Ni-MH, Pb (Lead Acid)


Share on your Facebook Page



The G.T. Power C607D charger is a simple yet powerful dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, and Pb (lead acid) batteries.

Features

  • Capacity Limit
  • Maximum safety
  • Temperature monitoring
  • Input power monitoring
  • Easy to program buttons
  • 5 battery memory
  • Individual cell monitoring
  • 2-Line Back lit LCD display
  • Built in Balancer to 6S packs
  • Cycle charging/discharging
  • Includes"FAST" &"STORAGE" Li-xx programs

Product Details

  • Output 80W
  • Discharge 5W
  • Balancing current 300mAh/cell
  • Operating input voltage : 11 - 18V DC or 100-240V AC
  • Ni-Cad / Ni-MH : 1 - 15 Cells
  • Li-Ion / Li-Po / Li-Fe / Li-Hv : 1 - 6 Series
  • Charge current : 0.1 - 7.0A
  • Discharging current: 0.1 - 1.0A
  • PB / Lead Acid : 2 - 20V
  • Built in Cell Ballancer : Up to 6S (series) Li-Po (JST-XH connectors)
  • No. of Cycles : Up to 5 Cycles
  • Weight : 400g
  • Dimensions : 136mm x 127mm x 56mm

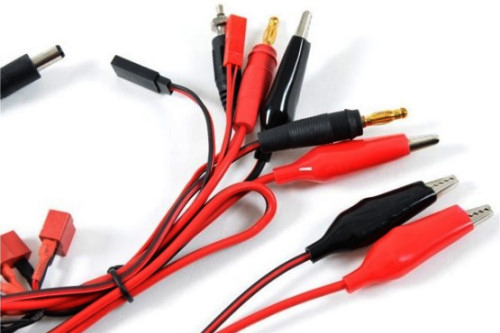

Includes (see above photo)

1 x Charger
1 x Alligator Clips to DC Cable
1 x Alligator Clips to Dean style connector
1 x Mini JST (red) connector to Dean style connector cable
1 x Female servo connector to Dean style connector cable
1 x Glow plug connector to Dean style connector cable
1 x 4mm banana connectors to Dean style connector cable
1 x Mains"kettle" lead with UK plug
1 x Manual

Please click here to download the G.T. Power C607D manual

Part Number Description Price Quantity
GT C607D-CHARGER G.T. Power C607D Charger £38.99
PP-BALBOARD-JST-XH 4Max
2-6S LiPo Balancer Board
2-6S LiPo Balance Board
JST-XH Connector
£2.99

4Max

PP-CHGLEAD-A

Multi way charging lead. 4mm banana plugs to connect to your charger. Plus JST/BEC, Deans Style, Futaba and JR Tx charging plugs a female servo plug to charge your 4/5 cell NiMh pack, plus a spare pair of leads. £7.49
