4-Max Brushless ESC's
Electronic Speed Controllers





Notes on Selecting an ESC

As with all things, it's best not to run ESC's right on their limit especially if there is limited cooling. As a rule of thumb if you your motor is expected to draw 25A then chose an ESC with 25% extra capacity i.e. 31.25A, the next one up is 40A so select a 40A ESC.


X = OPTO isolated and no BEC is included.

LMA = Lost model Alarm Feature

VERY IMPORTANT
Please follow this setup procedure for your 4-Max 4M ESC




Part Number Rating Max Amps
(10 Sec)
Volts BEC Weight Dimensions
in mm
Price Qty
4M-ESC6A
More Info
6A 10A 2 LiPo 5.5V
1.5A
SBEC
6.4g 28x11.5x7 £9.99
4M-ESC12A
More Info
12A 15A 2-3 LiPo 5.5V
2A
SBEC
15g 40x18.5x9.5 £13.95
4M-ESC20A
More Info
20A 25A 2-4 LiPo 5.5V
4A
SBEC
17.4g 44x18.5x11 £14.95
4M-ESC30A
More Info
30A 35A 2-4 LiPo 5.5V
4A
SBEC
28g 53x24x10 £17.95
4M-ESC40A
More Info
40A 50A 2-6 LiPo 5.5V
5A
SBEC
48g 67x26x15 £28.95
4M-ESC50A
More Info
50A 60A 2-6 LiPo 5.5V
5A
SBEC
64g 67x33x15 £39.95
4M-ESC60A35
More Info
3.5mm Connectors on Motor Side
60A 70A 2-6 LiPo 5.5V
5A
SBEC
62g 65x32x14 £44.95
4M-ESC60A40
More Info
4.0mm Connectors on Motor Side
60A 70A 2-6 LiPo 5.5V
5A
SBEC
62g 69x32x13 £44.95
4M-ESC70A
More Info
70A 80A 2-6 LiPo 5.5V
5A
SBEC
62g 69x32x13 £49.95
4M-ESC80A
More Info
80A 90A 2-6 LiPo 5.5V
5A
SBEC
68g 72x32x14 £55.00
4M-ESC90A
More Info
90A 100A 2-6 LiPo 5.5V
5A
SBEC
71g 70x32x15 £57.50 Out of Stock
PP-TESC90HVAU
More Info
90A 100A 5-12 LiPo OPTO 135g 99x48x21 £89.99
PP-TESC120HVAU
More Info
120A 140A 5-12 LiPo OPTO 140g 98x43x21 £99.99

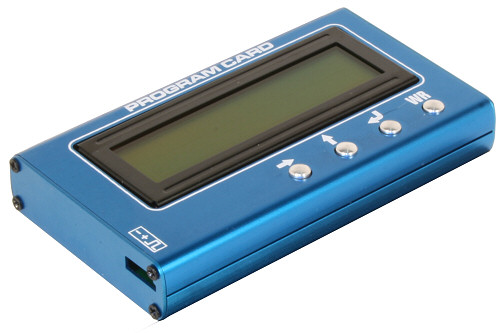

PP-PROGCARD Programming card for "PP-TESC" ESC's
(Not High Voltage ESC's)
£9.50
4M-PROGCARD Programming card for "4M-ESC" ESC's
(Not High Voltage ESC's)
£9.50
PP-PROGCARD-THV Programming card for High Voltage ESC's
"PP-TESC90HVAU and PP-TESC120HVAU"
£9.99



Out of Stock
